Never before has a professional 4×5 camera been
available at such an extraordinary price.
Unlike limited, entry level 4×5’s, the 45CX is a full featured system camera.
It grows as your needs grow. The 45CX is compatible with Toyo modular system
accessories, as well as roll film and digital backs from many other manufacturers.
Reserve yours today at your local dealer. Or for more information, contact
Toyo Professional Division.

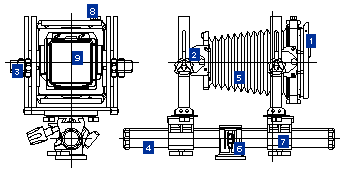

1. Reversible Graflok type back. 2. Center tilt design with full range
of movement: rise, tilt, swing, fall and shift. 3. Large ergonomic control
knobs with independent locks. 4. Rigid, interchangeable 18″, 39mm
Ø monorail with alignment guide. 5. Interchangeable normal/wide
tapered Flexilast™ Bellows. 6. Tripod mounting block for 1/4 and
3/8 sockets. 7. Micro-fine geared focus on front and rear. 8. Rear dual
axis spirit level. 9. Lens board included.
Rugged, light alloy and polycarbonate construction.
Compact, portable design.
SYSTEM ACCESSORIES
Accepts Toyo Modular System Accessories including lens boards and adapters,
bellows, monorails, backs, viewing hoods.
| Tilt |
front 45+45° |
rear 45+45° |
| Swing |
front 30+30° |
rear 30+30° |
| Rise |
front 80mm |
rear 80mm |
| Shift |
front 30+30mm |
rear 45+45mm |
| Focusing |
front geared |
rear geared |
| Min. Extension |
80mm w/flat lens board |
67.5mm w/recessed 12.5mm board |
| Max. Extension |
445mm |
|
| Weight |
7.9lbs |
|
 |
The new Toyo 45CX features all movements
expected of a versatile monorail view camera. Utilizing the standard
Toyo 39mm diameter 18″ base rail with micro focusing, its interchangeable
bellows permit the camera to be folded into a very compact package
when taken from the studio to outside locations. |
Both front and rear standards offer center 45° tilt movements, 30°
swing movements, and 80mm rise. The shift movement of the front standard
is 30mm. The rear standard’s is 45mm. The minimum bellows extension is
80mm with a flat lensboard, 76.5mm with a 12.5mm recessed board.
Its reversible Graflok type back accepts all 4×5 cutfilm holders, Kodak
Readyload and Polaroid 4×5, as well as 6×7 and 6×9 rollfilm holders.
The rear standard also features a dual axis spirit level.
Balloon bellows, for wide angle photography and most of the Toyo modular
system accessories can also be attached to this model.
All this in a modern view camera, which will have a “street price”
of about $600, will make the Toyo 45CX an exciting tool for established
as well as aspiring professional photographers.
General Information
Versatile, economical, full-movement view camera for studio, location
and field. Compact frame and tapered bellows design. Rugged and light
alloy and polycarbonate construction. Compact, portable design Rear Dual
Axis Spirit Level, Rigid Interchangeable 450mm (39mm diameter) monorail
with alignment guide.
Bellows
Interchangeable Bellows Tapered Normal / Wide Design accepts lenses down
to 90mm Toyo Flexilast™ Material Optional Wide Angle Bag Bellows.
Movements
Micro Fine Geared Focus on front & rear Tilt, Swing, Rise, Fall on
front and rear Center tilt Design maintains focus and composition as you
tilt.
Camera Back
Reversible Vertical/Horizontal Graflok Type Accepts all 4×5 cut film holders,
Kodak Readyload®, Polaroid® 4×5, and all roll film holders – 6x7cm,
6x9cm, 6x12cm with Graflock fitting.
System Accessories
– Lens Boards Flat, Recessed (for Wide Angle Lenses) or predrilled.
– Compendium Lens Hoods with Gelatin Filter Holder
– Interchangeable Bellows Standard and Wide Angle
– Groundglass Focusing Aids: Fresnel Lens, Focusing Hoods, with and without
Magnifiers
– Interchangeable Holders and Backs: Cut Film Holders, Roll Film Holders,
Polaroid Holders, Digital Backs
|
